Wiring trunking, type LK4 40080
Item no. 6178016 | EAN 4012196000777
- Product description
-

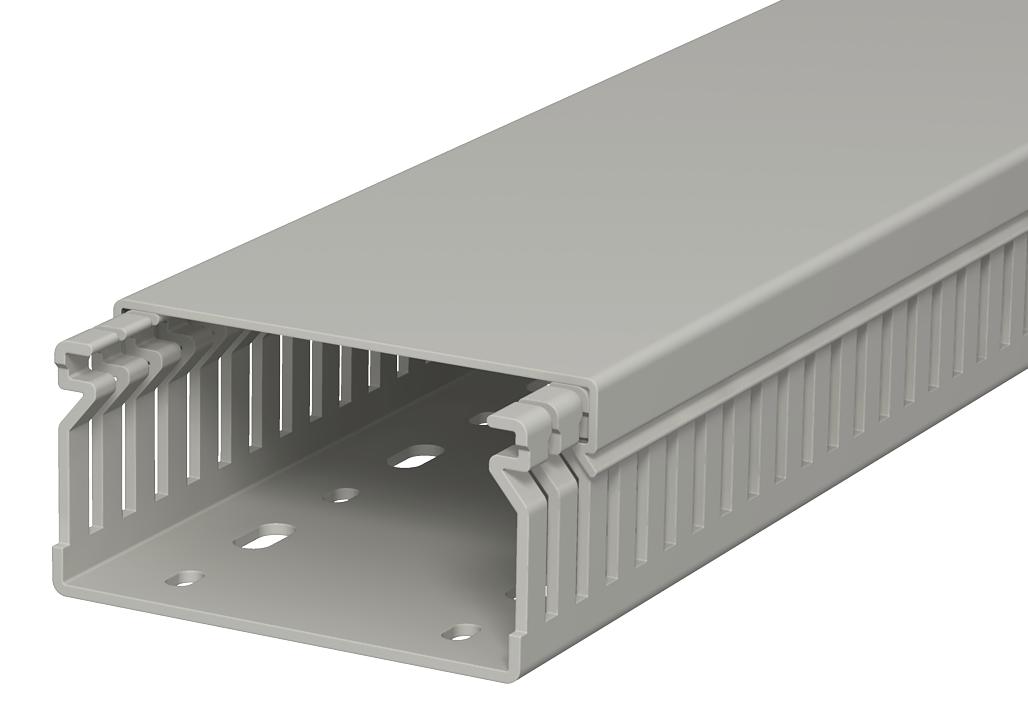

Product descriptionWiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
-
- Technical data
-
Technical data
Colour Stone grey; RAL 7030 Creepage current-resistant yes Dimension 40x80x2000 Fastening type Base perforation Flexible no Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Self-extinguishing yes Side wall version Slotted Slot spacing 10 mm Slot width 4 mm Usable cross-section 30,47 cm² With cover yes Dimensions

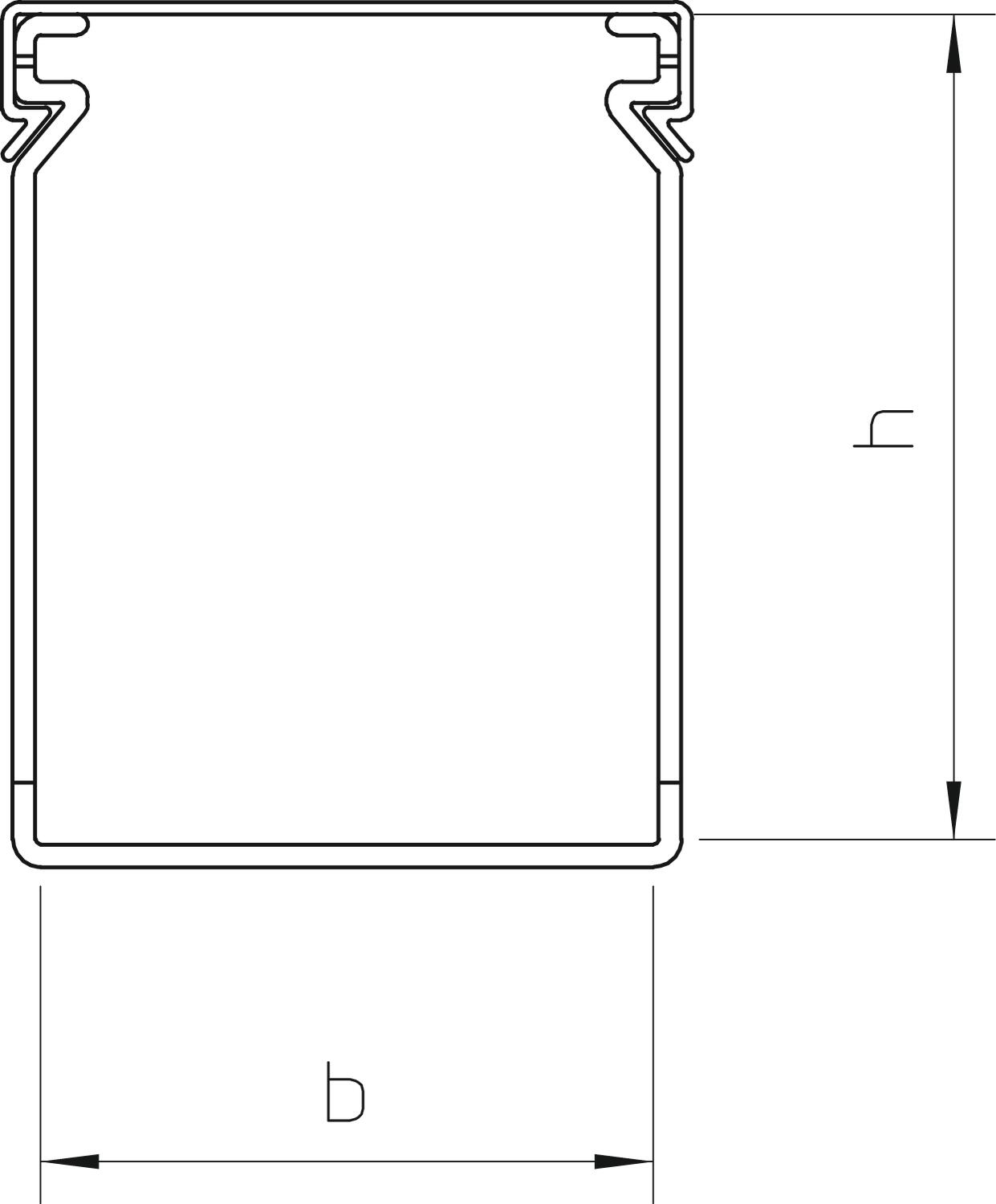

Height 40 mm Length 2000 mm Width 80 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,689 kg CO2e / 1 Meter CO₂ Footprint (GWP) 1,689 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU
Wire retainer for type LK4 and LK4 N
LK4 H 6178092 100 piece Mounting accessories
Products Types Item no. Quantity SSU
Body-bound rivet, KSN 22
KSN22 6178525 100 piece
Plastic rivet tool KNW2
KNW2 6178529 1 piece - Downloads
-
